Christie ACT Digital Cinema Theatre Control

Part Number: 101-102101-01

The Christie ACT puts automation control of your single screen, multiplex or entire theater chain – in your hand.

The Christie ACT is a very powerful and flexible web-based programmable automation solution. Being web based, it is conceivable to have full control over all auditorium functions whether it’s light dimmers, masking motors, audio levels or the projector and server from any web capable device on the same network.

With its adaptability, programmability and user-friendly GUI, the average user can easily customise tasks and events to specifically suit the needs of their own cinema operation/complex.

Features

Custom-designed cinema automation controller for Digital Cinema applications
Completely user programmable for custom configuration for any environment or theatrical installation
8+ channels of programmable manual actuators located on the front panel
Automation via simple GUI or advanced scripting
Sharing scripts between multiple Christie ACTs
Predefined scripts for supporting com with 3rd party devices
Ethernet, RS-232, RS-422 and USB support, web services-enabled
Web services based configuration interface

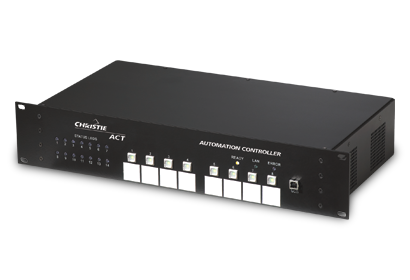

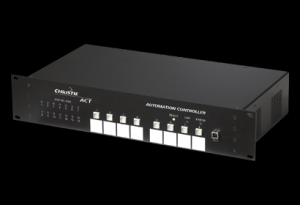

The Christie ACT is a 2RU steel box with general purpose I/O, RS-232, RS-422 and ethernet connections on the back and user defined status LED’s on the front. The main user interface utilized for setup and operation can be accessed from any external computer’s web browser.

The Christie ACT features pre-defined scripts for known devices. Eight channels of programmable manual actuators through the Web user interface, an unlimited amount of preset buttons can be created to individual requirements. An expansion port for additional device support provides flexibility for the future. Designed with Digital Cinema in mind, the Christie ACT can be configured to do exactly what you need it to do.

Inputs	16 opto-isolated, bi-directional inputs Optional internal pull-ups
Outputs	14 relays (SPST)
GPIO	7 non-isolated with 12V rail
Control Interface	8 front panel "hot buttons" and unlimited "virtual actuators" via web interface integrated web services Christie Serial Protocol
Power	Dual voltage (120/240 VAC) input
Logic Communications	RS-232 (3) RS-422 (1) Ethernet
Expansion Port	D-sub 9 pin
Program Storage	96 completely programmable by end users via easy to use web interface Includes device support for all CPseries D-Cinema projectors and various audio processors Users can define nearly unlimited amount of “virtual actuators”
Real Time Clock	Yes
Accessory Power	12V and 5V terminals
Dimensions	2RU (L x W x H) 9" x 19"x 3.5" (229 x 483 x 89mm)
Regulations	This product conforms to the following regulations related to product safety, environmental requirements and electromagnetic compatibility (EMC): FCC Part 15, Subpart B Class A; CISPR22/EN55022; CISPR24/EN55024 UL 60950-1 First Edition; CAN/CSA-C22.2 No 60950-1-03 First edition; IEC60950-1:2001 2002/95/EC RoHS CAN/CSA C22.2. No 60950-1-03 First edition
