| Product name |

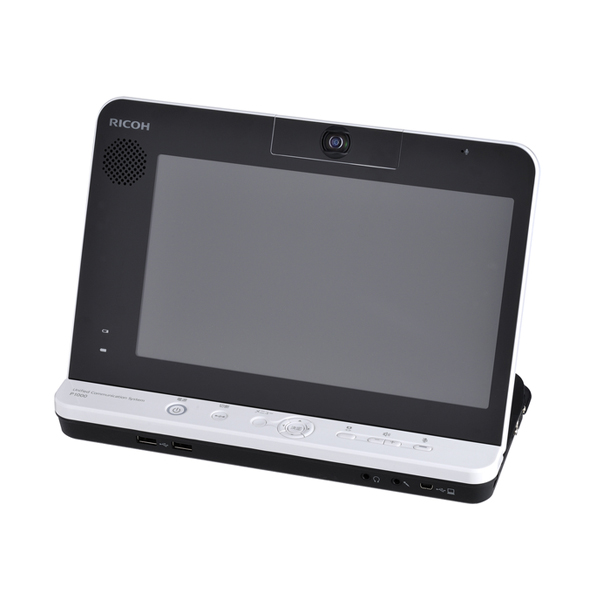

RICOH Unified Communication System P1000 |
| Image coding system |
H.264/SVC |
| Communication |
Protocol |
Unique procedure |
| Transmission speed |
500Kbps to 2Mbps |
| Power |
AC100-240V 50/60Hz |
| Power consumption |
Less than 30W |
| Warm-up time (Startup time) |
Less than 60 seconds |
| Noise |
Less than 40dB |
| Interface |
USB port A terminal |
For microphone speaker, USB camera (operation verified devices)*1 *2 |
| USB port B terminal |
For computer screen sharing |
| Wired LAN |
10BASE-T,100BASE-TX,1000BASE-T |
| Wireless LAN |
IEEE802.11g,IEEE802.11b,IEEE802.11n |
Authentication system
(wireless LAN) |
Open system authentication, shared key authentication
WPA-PSK, WPA2-PSK, WPA-EAP, WPA2-EAP |
Encryption system
(wireless LAN) |
WEP:WEP128bit/64bit,TKIP：WPA-PSK/WPA2-PSK/WPA-EAP/WPA2-EAP
AES:WPA-PSK/WPA2-PSK/WPA-EAP/WPA2-EAP |
| Image output |
XGA: 1024x768
WXGA: 1280×800 |
| Image output terminal |
RGB(D-sub15Pin)×1 |
| Sound terminal |
Headphone, Microphone |
| Power supply terminal |
For connecting the AC adapter |
| Multipoint connection |
Unlimited
|
| Simultaneous display |
4 |
| Built-in camera |
Sensor |
1.0M pixels |
| Angle |
Horizontal 170˚/Vertical 70˚(2 steps, reversible) |
| Display |
Size |
10.1' LCD |
| Resolution |
WSVGA: 1024x600 |
| Battery |
Duration time |
2 hours*3 |
| Dimentions |
280mm(W)x215mm(D)x29mm(H) (excluding protrusions) |
| Weight |
Less than 1.3kg |
| Computer screen sharing (Windows) |
Compatible computer screen resolution |
SVGA (800x600), XGA (1024x768), WXGA (1280x800 only) |
| OS(32-bit) |
Windows XP Home Edition/Professional SP3
Windows Vista Home Basic/Home Premium/Business/Enterprise/Ultimate SP2
Windows 7 Home Premium/Professional/Enterprise/Ultimate SP1
Windows 8 Core/Pro/Enterprise |
| OS(64-bit) |
Windows Vista Home Basic/Home Premium/Business/Enterprise/Ultimate SP2
Windows 7 Home Premium/Professional/Enterprise/Ultimate SP1,
Windows 8 Core/Pro/Enterprise |
| CPU |
Pentium M 1.2GHz or faster |
| Memory |
512MB or more |
| Hard disk |
Program area 100MB or more |
| Computer screen sharing (Mac) |
Compatible computer screen resolution |
800x600 to 1440x900 |
| OS |
OS X 10.7, 10.8 |
| Supported languages |
Japanese, English, German, French, Italian, Spanish, Dutch,Swedish, Russian, Brazilian Portuguese, Traditional Chinese, Simplifid Chinese |
| Operating environment |
In operation |
Temperature: 10 to 35˚, Humidity: 15 to 80% (no condensation) |
| In storage |
Temperature: 0 to 43˚, Humidity: 10 to 90% (no condensation) |
| Altitude |
Height above sea level: 3,048m |
| Accessories |
AC adaptor, Plug for AC adaptor, USB cable, Rechargeable battery, Carrying bag, Quick guide, Notes for administrators, EULA, Read this first |
