Parametry:

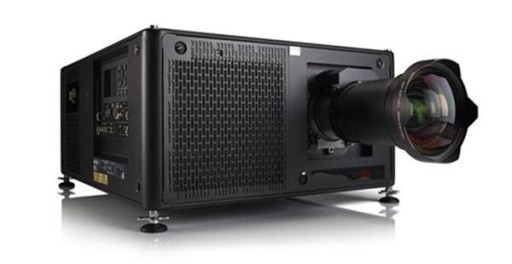

Projector type 4K UHD 3-chip DLP digital projector
Technology 0.9" DMD™ x3
Resolution 3,840 x 2,400 (4K UHD) / 2,560 x 1,600 (native)
Brightness 21,000 (WQ)/20,000 (4K UHD) center lumens*
Contrast ratio 2,000:1
Brightness uniformity 90%
Aspect ratio 16:10
ScenergiX Horizontal and vertical edge blending
Lenses TLD+ 0.37, 0.65-0.85, 0.8-1.16 ; 1.25-1.6:1 ; 1.5-2.0:1 ; 2.0-2.8:1 ; 2.8-4.5:1 ; 4.5-7.5:1 ; 7.5-11.5:1
Optical lens shift Vert -100% to +130% / Hor +/-40% on zoom lenses memorized
Color correction P7
Light source Laser phosphor with inorganic phosphor wheel
Light source lifetime +20,000 hrs
Optical dowser Digital
Picture-in-picture Two sources simultaneously
Sealed DLP™ core Standard
Orientation 360°
DMX 512 standard*
WARP Direct adjust OSD + toolset
Integrated web server Yes
CLO (constant light output) Standard
3D Active eye wear (optional), passive circular (optional); 3 flash up to 200Hz*
Inputs Single HDBaseT; HDMI 2.0 (HDCP 2.2); DP 1.2 (HDCP 1.3); Quad SDI/HDSDI/dual HDSDI/6G/BarcoLink
Optional Inputs Quad DP1.2
Input resolutions
From NTSC up to 4K (4,096 x 2,160)
Max. pixel clock 600 Mhz
Software tools Projector Toolset + Android* app + iOS* app
Control XLR wired + IR, RS232, Wifi*, GSM* (opt)
Network connection 10/100 base-T, RJ-45 connection, Wifi* (optional)
Power requirements 120-160 V(reduced power) / 200-240 V (+/- 10%), 20 A, 50-60 Hz
Max. power consumption 1,900W @ 230 volts STBY<10W
Noise level (typical at 25°C/77°F) 49dB(A)
Operational ambient temperature 0°-40°C/ 32°-104°F (45°C reduced power)
Operational humidity 0-80% (non condens)
Dissipation BTU Max. 6,600 BTU/h
Dimensions (WxLxH) 660 x 830 x 350 mm (25.98 x 32.67 x 13.77")
Shipping Dimensions (LxWxH)1,200 x 980 x 760 mm (47.24 x 38.58 x 29.92")
Weight 87.5 kg (193 lbs)/shipping weight from factory: 105kg (231lbs)
Standard accessories Power cord, wireless/XLR wired rugged remote control
Certifications Compliant with UL60950-1 and EN60950-1, complies with FCC rules & regulations, part 15 Class A and CE EN55032 Class A, Rohs
Warranty 3 years
* Software upgradeable. Check with your local authorized Barco sales representative for full details.
