Dane techniczne:

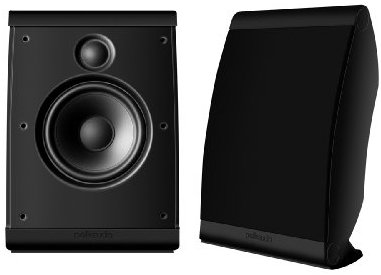

MULTI-APPLICATION LOUDSPEAKER
Orientation
Vertical
Horizontal
Height
10" (25.4 cm)
Width
7" (17.78 cm)
Depth
4" (10.16 cm)
Weight
4 lbs (1.81 kg)
Front Array Driver Complement
(1) 4.5" (11.43 cm) d (Round) - Mid/Woofer
(1) 1" (2.54 cm) d (Round) - Tweeter
AUDIO QUALITY
Total Frequency Response
80 Hz → 25 Hz
Nominal Impedance
8|||| ohms
Sensitivity (1 watt @ 1 metre)
89 dB
Lower and Upper -3dB Limits
100 Hz → 22 Hz
ANGLED WALL MOUNT MOUNT
Mounting Type
Keyhole Hanger
Available Orientations
Vertical
Horizontal
Mounting Location
Back of Speaker
Bottom of Speaker
Near: Bottom, Centre
SWIVEL WALL/CEILING MOUNT MOUNT
Mounting Type
1/4" 20 Threaded Insert
Available Orientations
Horizontal
Vertical
Mounting Location
Back of Speaker
Bottom of Speaker
Near: Bottom, Centre
ON-SHELF MOUNT
Mounting Type
Keyhole Hanger
Available Orientations
Horizontal
Mounting Location
Back of Speaker - Near: Centre
CORNER MOUNT MOUNT
Mounting Type
Keyhole Hanger
Available Orientations
Horizontal
Vertical
Mounting Location
Back of Speaker
Bottom of Speaker
Near: Bottom, Centre
EXTERNAL AMPLIFIER
Recommended Amplifier Power Per Channel
20 watts → 100 watts
INPUTS
Audio Inputs
Speaker Inputs
(1) 5-way Binding Posts - Gold-Plated
