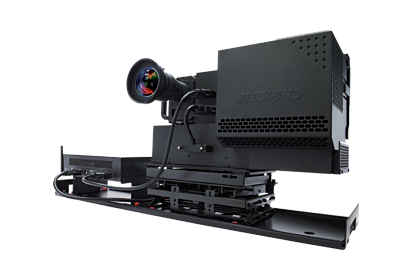

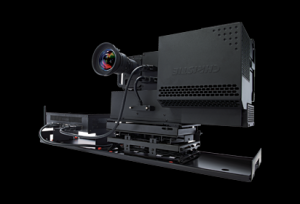

| Light engine |
|
| Application |
- New, custom rear projection displays
- Retrofit of existing cube displays
- Retrofit of older customer display walls
|
| Imaging technologies |
- Imaging
- 1-chip DLP, DarkChip
- Texas Instruments
- Native resolutions
- WUXGA (1920 x 1200)
- 16:10 aspect ratio
- Illumination
- LED (red, green, blue)
- OSRAM
- redundant LED architecture
|
| Brightness |
- ANSI
- Up to 1350 lumens in high brightness mode
- 950 lumens in normal mode
- 740 lumens in eco mode
- Operating modes
- normal, eco and high brightness
- Control
- Manual and continuous automatic control to manage brightness uniformity across large display walls
|
| Colour |
- Temperature range
- Gamut
- White balance uniformity
- Control
- ArraySync™ automatic color management with 12-bit processing to precisely and continuously manage uniformity across large display walls without user intervention
- Precise tri-stimulus colour sensing (x,y,z) for superior colour management
- Display light engine is factory calibrated using scientific-grade spectral radiometers for high precision colour management
- Comprehensive controls for manual setup if desired
|
| Optical |
- Lens types
- 0.64:1 low distortion, zero offset
- Lens orientation
- Brightness uniformity
- Contrast ratio
- up to 2100:1 full field without using dynamic or artificial techniques
|
| Audible noise |
- Noise power level
- <30 dBA typical at 1 meter distance from screen center
|
| Inputs |
- Standard
- 1 x digital DVI-D
- 165MHz maximum pixel clock frequency
- Single link
- Loop through
- HDCP support
- Included (operating at native resolution)
- Optional expansion
- Secondary DVI-D input with automatic fail detection and switch over
- Compatibility
- All Christie video wall processors and other standard SXGA+ sources
|
| Control and networking |
- Methods
- IR remote keypad
- External computer or control device via Wi-Fi and/or Ethernet and/or RS-232
- Wi-Fi (can be disabled with no radio frequency transmission if required)
- Physical ports
- 1 x RS-232
- 2 x Ethernet RJ45
|
| Monitoring |
- Status display
- 2 line by 16 character OLED display
- Diagnostics
- via status display, RS-232 and Ethernet/Wi-Fi (can be disabled with no radio frequency transmission if required)
|
| Upgradability |
- Software/firmware
- Fast, on site firmware upgrades via USB, Ethernet or RS-232
|
| Options |
- Accessories
- secondary DVI-D input module
|
| Physical characteristics |
|
| Environment |
- Operating temperature
- 32°F to 104°F, 0°C to 40°C
- Non-operating temperature
- -13°F to 158°F, -25°C to 70°C
- Humidity
- Altitude
- 0 to 3000 metres, 0 to 10,000 feet
|
| Power rating (core engine only) |
- Voltage range
- Power consumption
- 155W/210W/250W watts (eco/normal/high brightness)
- Dissipation
- 529/717/853 BTU/hr (eco/normal/high brightness)
|
| Reliability and serviceablity |
- MTBF/MTTR
- MTBF: >60,000 hours for all major modules
- 76,000 hrs for power supply
- MTTR: <15 minutes via modular servicing
- Cooling fan lifetime
- LED lifetime
- >80,000 hours in eco mode
- >60,000 in normal operating mode
|
| Regulatory (projection engine) |
- Directives/certifications
- (EC) 2011/65/EU (RoHS)
- 2012/19/EU (WEEE)
- Regulation (EC) No. 1907/2006 (REACH)
- CAN/CSA C22.2 No. 60950-1
- UL 60950-1
- IEC 60950-1
- FCC, Part 15, Subpart B, Class A
- ICES/NMB003 (A)
- EN55022/CISPR22 Class A
- EN55024/CISPR24
- The product is designed to comply with rules and regulations required for the product to be sold in various regional markets, including: USA/Canada, EU, Australia/New Zealand, Kuwait, China, Korea, Japan, Mexico, Ukraine, Russia, South Africa, and Saudi Arabia
|
| Warranty |
- two years parts and labour limited warranty
|
| Additional features and benefits |
- newer high brightness LED technology
- redundant LED design
- zero maintenance design
- no consumable parts
- integrated 6-axis adjustment system – no electronic image correction required
- full function remote keypad with easy-to-use menu system
- tiling feature to display a single source across a wall array
- DVI loop through minimizes cabling
- multiple Ethernet ports minimise cabling
- safe, water-filled, maintenance free, metal sealed heat pipe cooling system ensures long LED lifetime and reliability
- no liquid cooling pumps containing hazardous liquids and requiring annual maintenance/inspection nor hazardous waste disposal
- latest generation processing electronics allowing future enhancements and features
- intuitive software-based setup tools included for simple and fast setup
- cross-display monitoring whereby each display monitors and tracks settings of all other displays in the array
|
