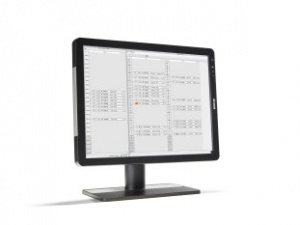

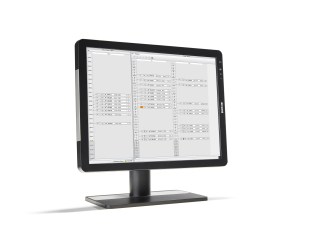

The growing reliance on advanced software tools increases the need for more diverse HMI display surfaces in ATC and ATM environments. Barco's MDRC-2221, a 21.3-inch auxiliary display with a 1,600 x 1,200 resolution and wide viewing angle, answers that need. Thanks to its 4:3 aspect ratio screen, the display is suited for a wide range of applications. Furthermore, its high-quality IPS LCD panel and continuous backlight stabilization technology ensure high and stable brightness, and offer a wide viewing angle. Easily integrated into consoles, the MDRC-2221 ATM is highly accepted in air traffic control rooms worldwide.
Featuring the latest LCD panel technologies, the MDRC-2221 ATM offers brightness uniformity in white, gray, and black images. The wide viewing angle, high contrast, and anti-reflective surface allow you to observe data at a glance, and in the best possible conditions.
The fan-less design ensures noiseless operation for improved operator comfort. All cables are hidden and connectors are easily accessible. Thanks to its slim design, low weight and mechanical flexibility, the display provides control center designers with a new degree of freedom to reduce plant and energy costs.
Using mercury-free and energy-saving LED backlights, the MDRC-2221 ATM significantly reduces power consumption. When not in active use, the display consumes near-zero energy and produces no heat.
| Active screen diagonal | 541 mm (21.3") |
|---|---|
| Screen technology | TFT Color LCD |
| Active screen area | 432 mm x 324 mm (17" x 12.76") |
| Aspect Ratio | 4:3 |
| Native resolution | 1600x1200 |
| Pixel pitch | 0.270 x 0.270 mm |
| Viewing angle | 178° |
| Brightness | 250 cd/m² (max typ 440 cd/m²) |
| Contrast ratio | 1500:1 |
| Video input signals | DP, DVI |
| Backlight Output Stabilization (BLOS) | yes |
| Backlight | LED - Backlight optical stabilization |
| Ambient Light Compensation (ALC) | yes, preset value in OSD |
| Touch screen | no |
| Power consumption | 23 W nominal; less than 1.0 W in off/stand-by mode; DPMS support |
| Power requirements | 100-250 V (nominal) |
| USB ports | 1 upstream, 2 downstream |
| USB standard | 2.0 |
| Dimensions w/o stand (W x H x D) | 376 x 484 x 75.93 mm (portrait) 484 x 376 x 75.93 mm (landscape) |
| Dimensions with stand (W x H x D) | 376 x 591.7 x 201.33 mm (portrait) 484 x 537.7 x 201.33 mm (landscape) |
| Dimensions packaged (W x H x D) | 584 x 667 x 272 mm |
| Net weight with stand | 8.7 kg |
| Net weight w/o stand | 5.25 kg |
| Net weight packaged with stand | 12.4 kg |
| Height adjustment range | 100 mm +/- 5.0 mm |
| Tilt | -5° / +20° |
| Swivel | -45° / +45° |
| Pivot | 90° |
| Mounting standard | VESA (100 mm) |
| Certifications | CE (MDD 93/42/EEC class I product), CE - 2004/ 108/EC, IEC 60601-1:2005, ANSI/AAMI ES60601-1 (2005/(R)2012 + C1:2009/(R)2012 + A2:2010/(R)2012), CAN/CSA-C22.2 No. 60601-1 (2008), DEMKO - EN 60601- 1:2006, EN 60601-1-2:2007, KC, VCCI, FCC class B, ICES-001 Level B, FDA Class I device, RoHS |
| Supplied accessories | User Guide Cable routing strap Video cables (1x DVI, 1x DP) Main cables (UK, European (CEBEC/KEMA) or USA (UL/CSA) Adaptor plug NEMA 5-15P) USB 2.0 cable This adaptor is a forming part of the device. (Manufacturer: BridgePower Corp.; Model: BPM060S24F09; Input: 100-240 V AC, 50-60 Hz, 1.5 A; Output: +24 V DCV, 2.7 A) |
| Warranty | 3 years |
