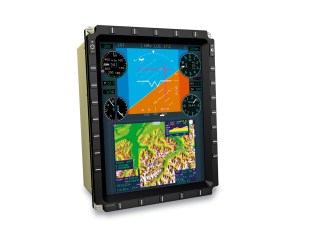

Equipped with sunlight-readable AMLCD and LED backlight technology, the CHDD-268 provides exceptionally high brightness, excellent contrast, and a very wide viewing angle in all directions. It allows the same unit to be used in portrait as well as landscape mode.
The innovative CHDD-268 unit is certified up to level A for displaying critical data. Because of this, the display can be used as Primary Flight Display (in combination with an external symbol generator like the PU-2000) in almost any type of aircraft.
• 2 Digital Video Inputs (DVI)
• Various possible analog video inputs (Composite, VGA to XGA RGB (SoG or +H,+V), STANAG 3350B & C)
• Exceptional optical performance
• Extra wide viewing angle
• Unique infrared touch screen option
• Compact design
• Various keyboard options
• Option NVIS Class B compatibility
• Ambient luminance control
• Compatible with PU-2000 Processing Unit
• Extensive Built-In Testing (BIT)
| Panel type | AMLCD (Silicon TFT) |
|---|---|
| Panel active area | 158.2 x 211.1 mm / 6.23 x 8.31" |
| Panel resolution | 1024 x 768 |
| Screen specifications | 262,144 colors 64 grayscales (253 with dithering) |
| Brightness | White surface luminance 250 fL, 856 cd/m² |
| Contrast ratio | >500:1 @ dark environment >10:1 @ 10,000 fC |
| Anti-reflection | MIL-C-14806A |
| Colors | Extended color gamut thanks to LED backlight |
| NVIS | MIL-STD-3009 Class B Type II NVIS (optional) |
| Color temperature | <5000 K |
| Viewing angle | Horz: +/-80°, Vert: +/-80° |
| Video inputs | DVI digital video (maximum 2) Analog video (maximum 6, depending on format) |
| Control | RS-422 keyboard communication |
| Power Supply | 28 Vdc, DO-160E |
| Power consumption | 70W at 150 fL (operating) |
| Weight | 3.5 kg / 7.8 lbs |
| Cooling | Internal fans, cooling via cold wall |
| Built-in testing | IBI, CBIT, PBIT |
| Software | RTCA/DO-178B Level B (D for analog inputs) |
| Hardware | RTCA/DO-254 Level A (D for analog inputs) |
| Environmental | RTCA/DO-160E |
| High temperature | +55°C / +131°F operational, +71° / +160°F (30 mins) |
| Low temperature | -40°C / -140°F operational |
| Warm-up time | 5 min. |
| Humidity | Up to 95% RH, 60°C condensing |
| Vibration | DO-160E |
| Operational shock | DO-160E 6g |
| Altitude | 50,000 ft (operational) |
| MTBF | 15,000 hrs (AIC) |
| Front controls | Brightness Up/down rocker switch |
| Control keys | Special function keys, customer selectable softkeys Optional infrared touch screen Automatic light control, 2 light sensors |
| Options | • Picture in Picture (PIP) digital/analog or analog/digital, scaling, rotating, image dithering capabilities for FLIR cameras • Contrast control on second rocker switch • IR touch screen • Bezel with rotary buttons and/or joystick |
